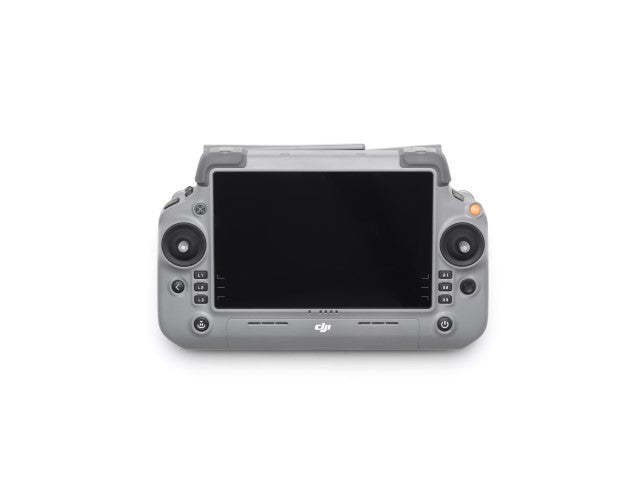

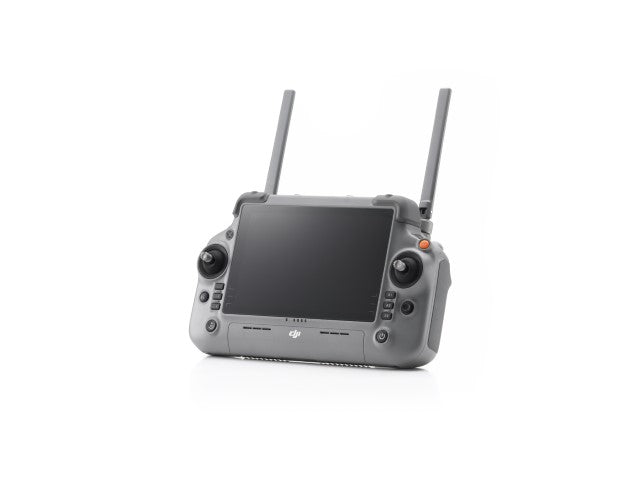

DJI RC Plus 2

In the Box

• Remote Controller × 1

Overview

The DJI RC Plus 2 Enterprise boasts a high-brightness display, ensuring clear visibility even under direct sunlight. With an IP54 protection rating, it performs reliably in temperatures from -20°C to 50°C (-4°F to 122°F). Featuring the advanced O4 Enterprise video transmission system, a high-gain antenna array, and support for SDR and 4G hybrid transmission, it provides stable, high-quality video feeds in both urban and remote settings.

Highlights

• High-bright display
• IP54 protection rating
• O4 Enterprise video transmission
• Support for SDR and 4G hybrid transmission

Tips

1. Before using for the first time, download and review the safety guidelines and user manual for the compatible aircraft from the DJI official website.
2. Use caution when operating an Unmanned Aerial Vehicle (UAV) with the remote controller to avoid injury to yourself or others.
3. Handle the remote controller with care during use and transportation. Avoid impacts that may damage the touchscreen, joysticks, or other components.

Specifications

OcuSync

• Operating Frequency Range*: 5.150–5.250 GHz; 5.725–5.850 GHz
• Transmitter Power (EIRP):
  • 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
  • 5.1 GHz: <23 dBm (FCC/CE)
  • 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)

Wi-Fi

• 802.11 a/b/g/n/ac/ax
• Operating Frequency Range*: 2.4000–2.4835 GHz; 5.150–5.250 GHz; 5.725–5.850 GHz
• Transmitter Power (EIRP):
  • 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
  • 5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC)
  • 5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE)

Bluetooth

• Version: Bluetooth 5.2
• Working Frequency: 2.4000–2.4835 GHz
• Transmitter Power (EIRP): <10 dBm

General

• Model: TKPL2
• Battery Type: Li-ion (6500 mAh @ 7.2 V)
• Chemical System: LiNiCoAlO2
• Recommended Charger: USB-C chargers with max rated power of 100W
• Rated Power: 12.5 W
• GNSS: GPS + Galileo + BeiDou
• Video Output Port: HDMI Type-A
• Operating Temperature: -4° to 122° F (-20° to 50° C)
• Storage Temperature:
  • Within one month: -22° to 113° F (-30° to 45° C)
  • One to three months: -22° to 95° F (-30° to 35° C)
  • Three months to one year: -22° to 86° F (-30° to 30° C)
• Charging Temperature: 41° to 104° F (5° to 40° C)

Operating frequency regulations differ by country or region. Be sure to check local laws and guidelines to ensure compliance.

Compatibility

• DJI Matrice 4 Series
