DJI O4 Ground Station

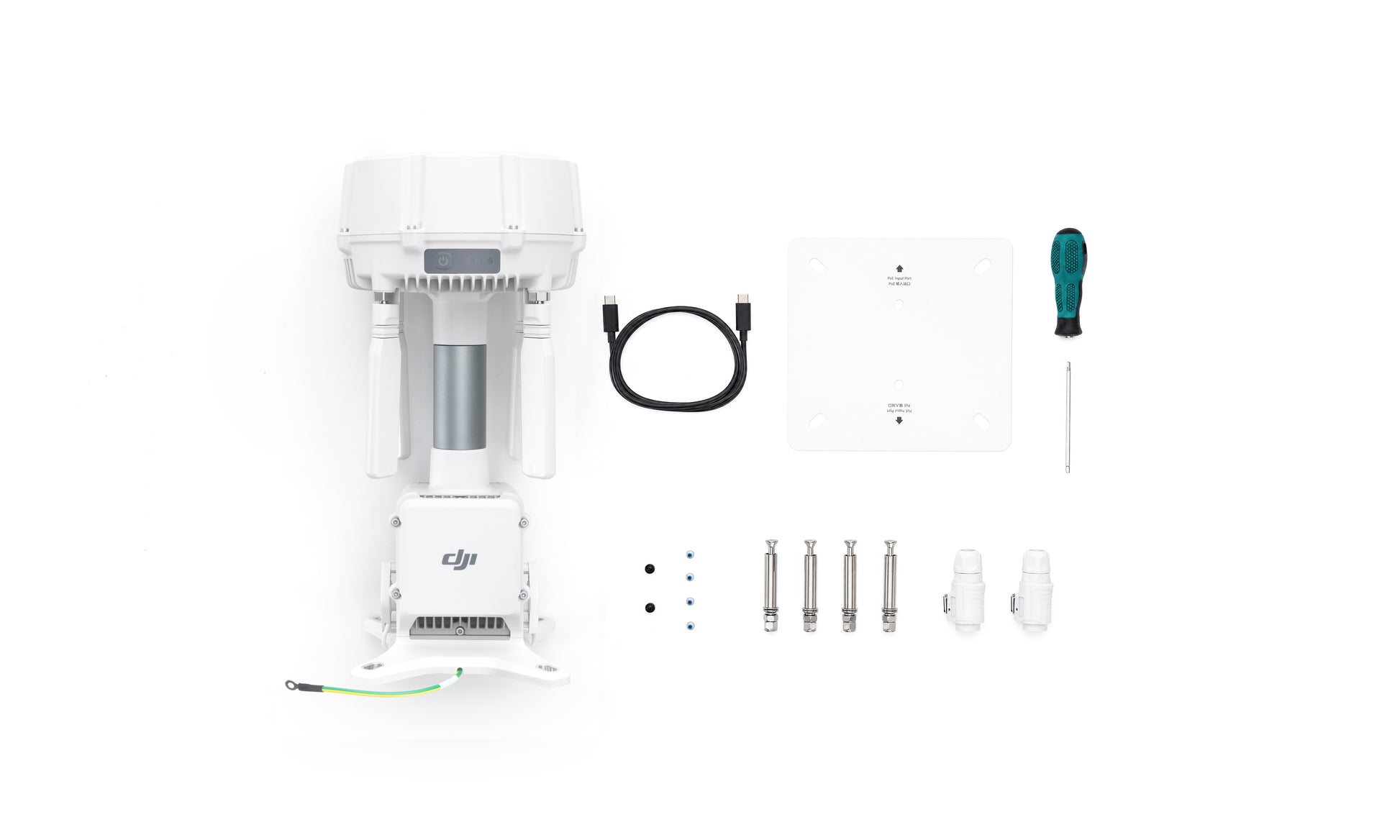

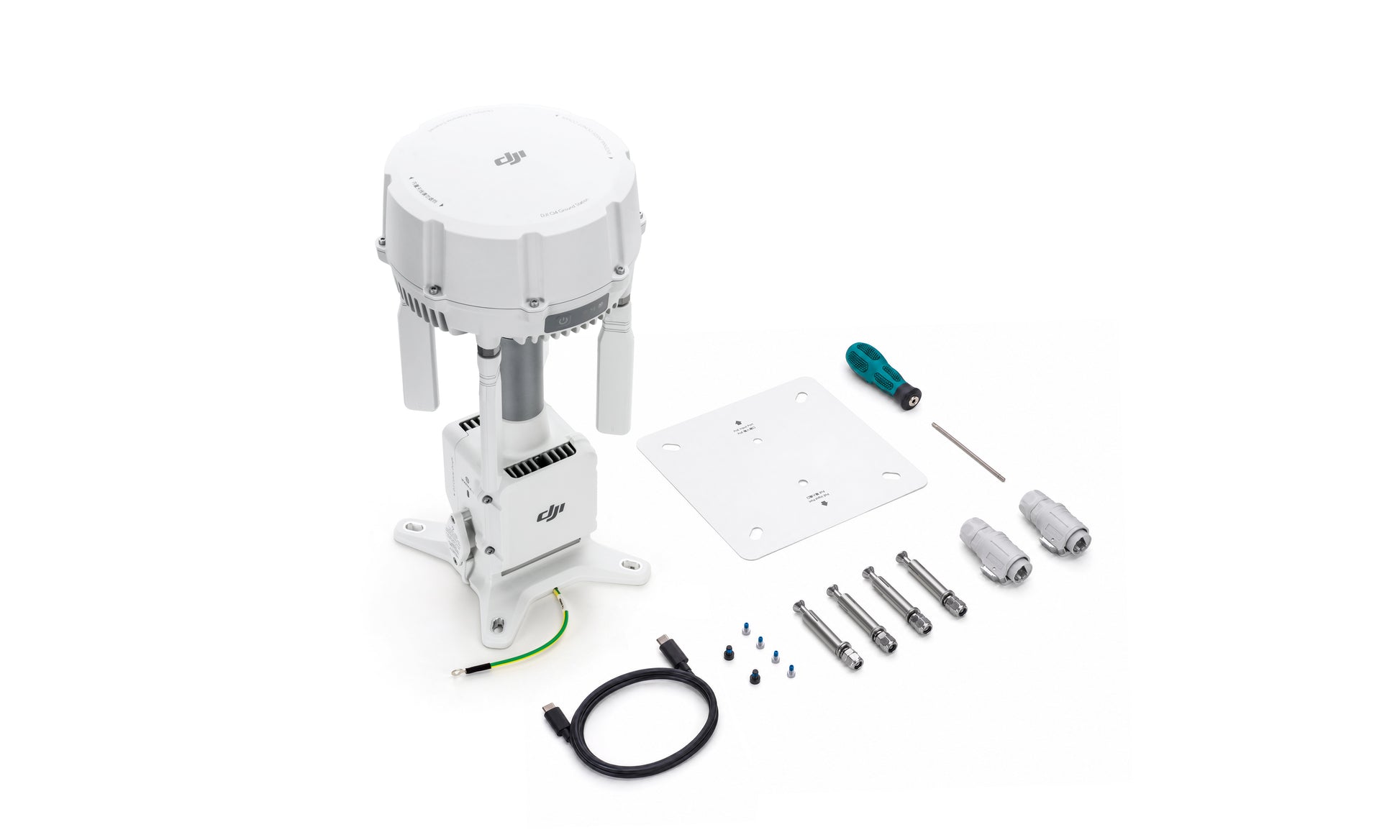

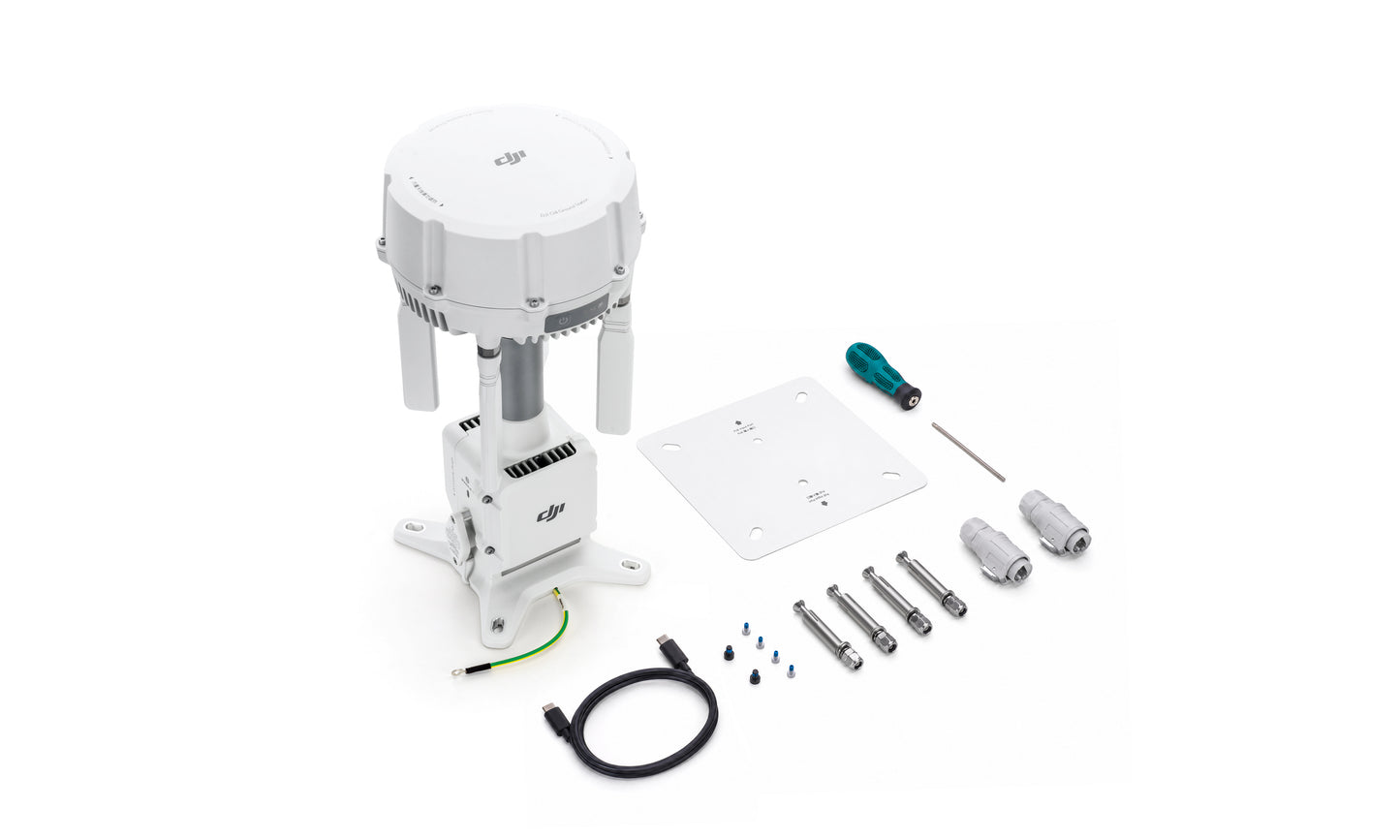

In The Box:

• 1x DJI O4 Ground Station
• 1x USB-C to USB-C Cable
• 2x Ethernet Connector
• 4x Expansion Bolts
• 1x Installation Card
• 1x Screws and Tools


DJI O4 Ground Station: Reach Farther, Stay Aware

The DJI O4 Ground Station is a highly durable, wide-area transmission system built to extend operational range and ensure constant situational awareness for drone pilots. Designed for continuous, 24/7 unattended use, this maintenance-free station easily overcomes the signal limitations of traditional setups. By leveraging a high-performance RF unit, it delivers exceptional signal penetration, guaranteeing secure and reliable communication links even when navigating through heavily obstructed urban environments.

At the heart of its robust performance is an advanced 12-antenna array that utilizes both horizontal and vertical polarization to provide high-gain, omnidirectional coverage. This sophisticated setup features automatic multi-band selection and actively optimizes the signal-to-noise ratio, greatly improving receiver sensitivity in areas with heavy electromagnetic interference. As a result, operators benefit from a stable, uninterrupted connection to their aircraft, no matter where the drone is positioned during expansive missions.

To accommodate diverse enterprise needs, the ground station features specialized connectivity modes that simplify integration and deployment. The innovative Gateway Mode links directly with DJI FlightHub 2, removing standard deployment hurdles and enabling effortless centralized management for your fleet. Meanwhile, the Relay Mode ensures reliable offline reach for operations conducted in remote or disconnected locations. Combined, these intelligent features form an adaptable, resilient ecosystem ready to tackle the most demanding enterprise requirements.

Compatibility:

• Gateway Mode: DJI Dock 3
• Relay Mode*: DJI Dock 3, Matrice 400, Matrice 4E, Matrice 4T, and Matrice 4D/4TD (DJI RC Plus 2 Enterprise)

* Before enabling this feature, please verify your local regulations regarding 5GHz frequency bands. Be aware that 5GHz usage is restricted or unsupported in several regions, including Japan and Kazakhstan. Ensure you are fully compliant with your local airspace and telecommunication laws prior to operation.
