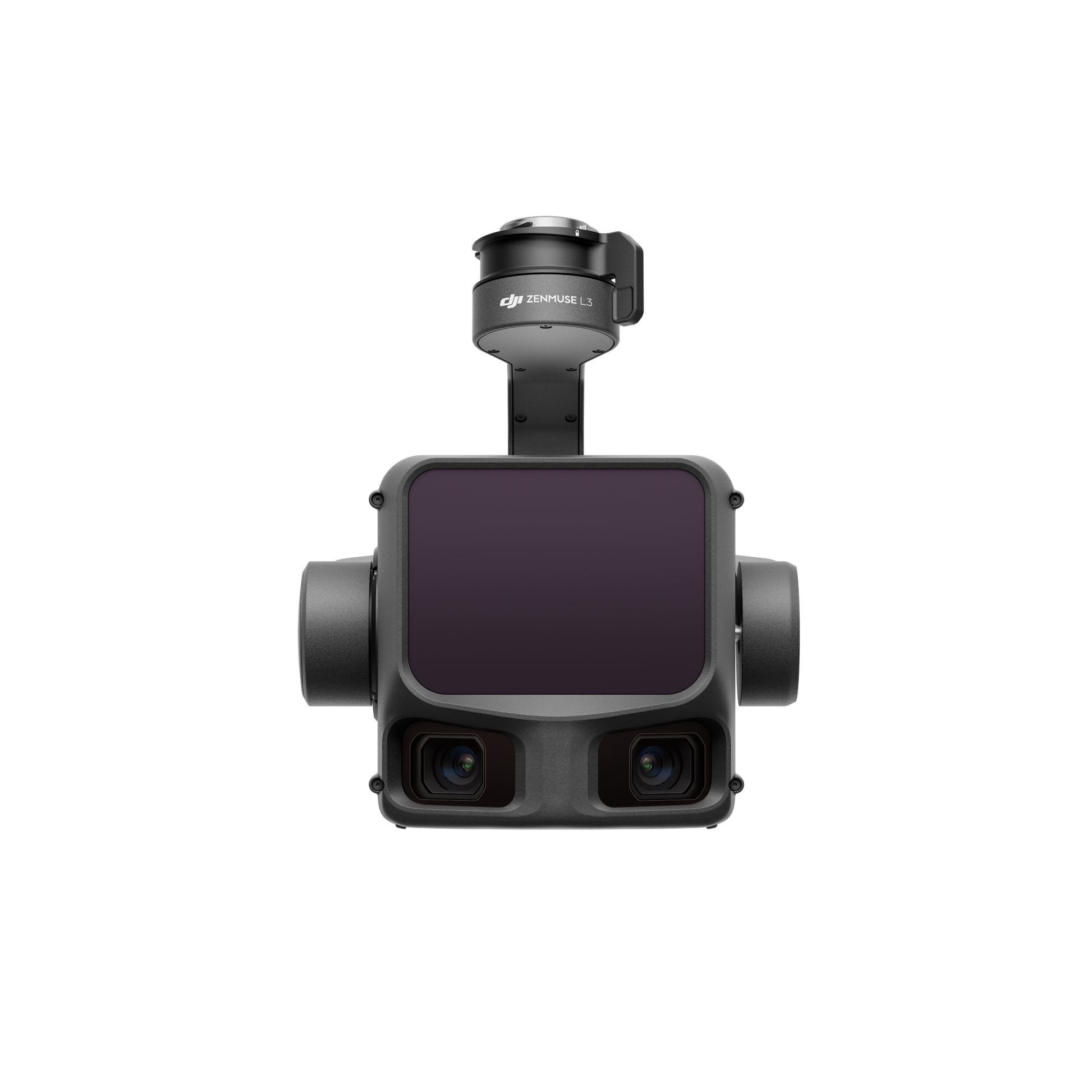

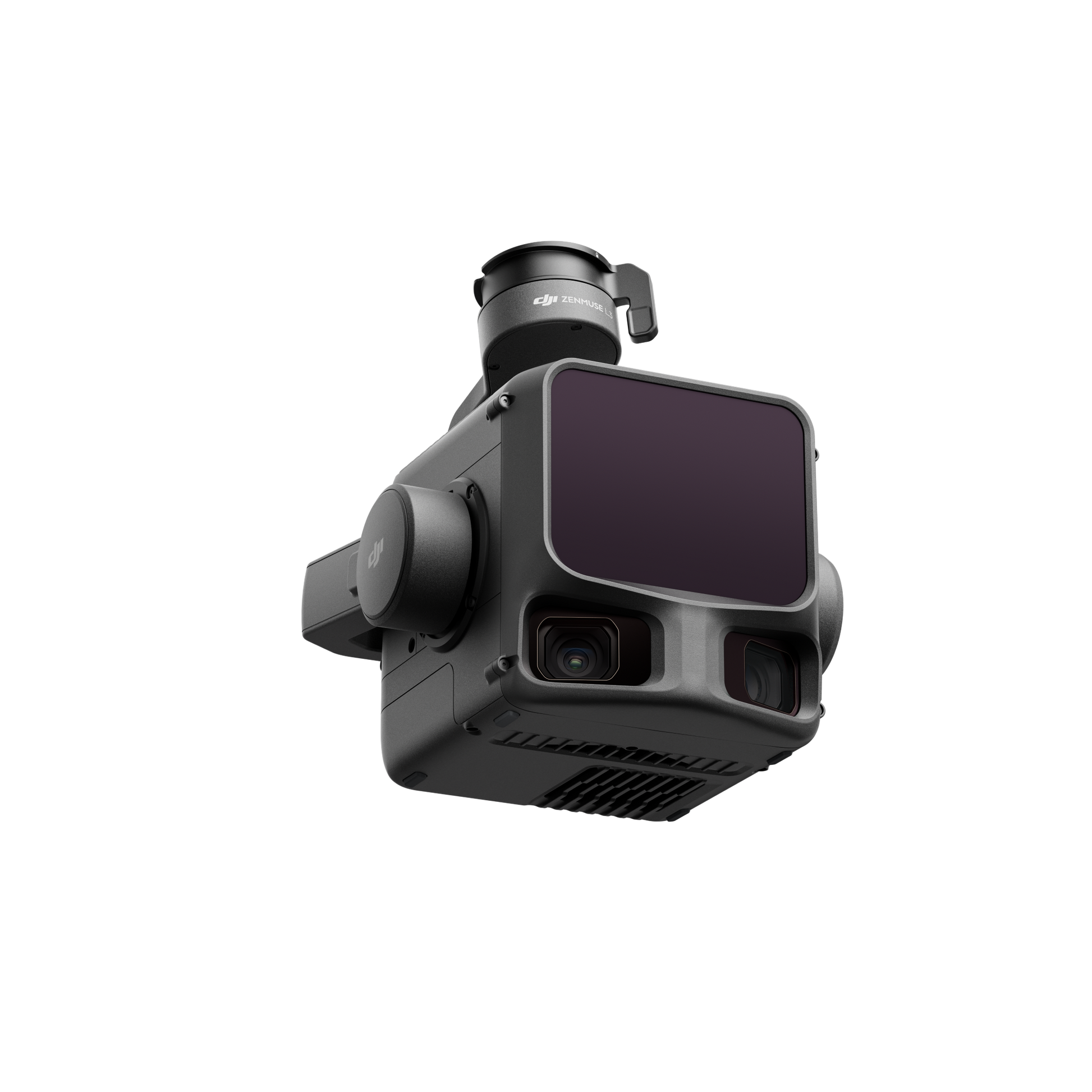

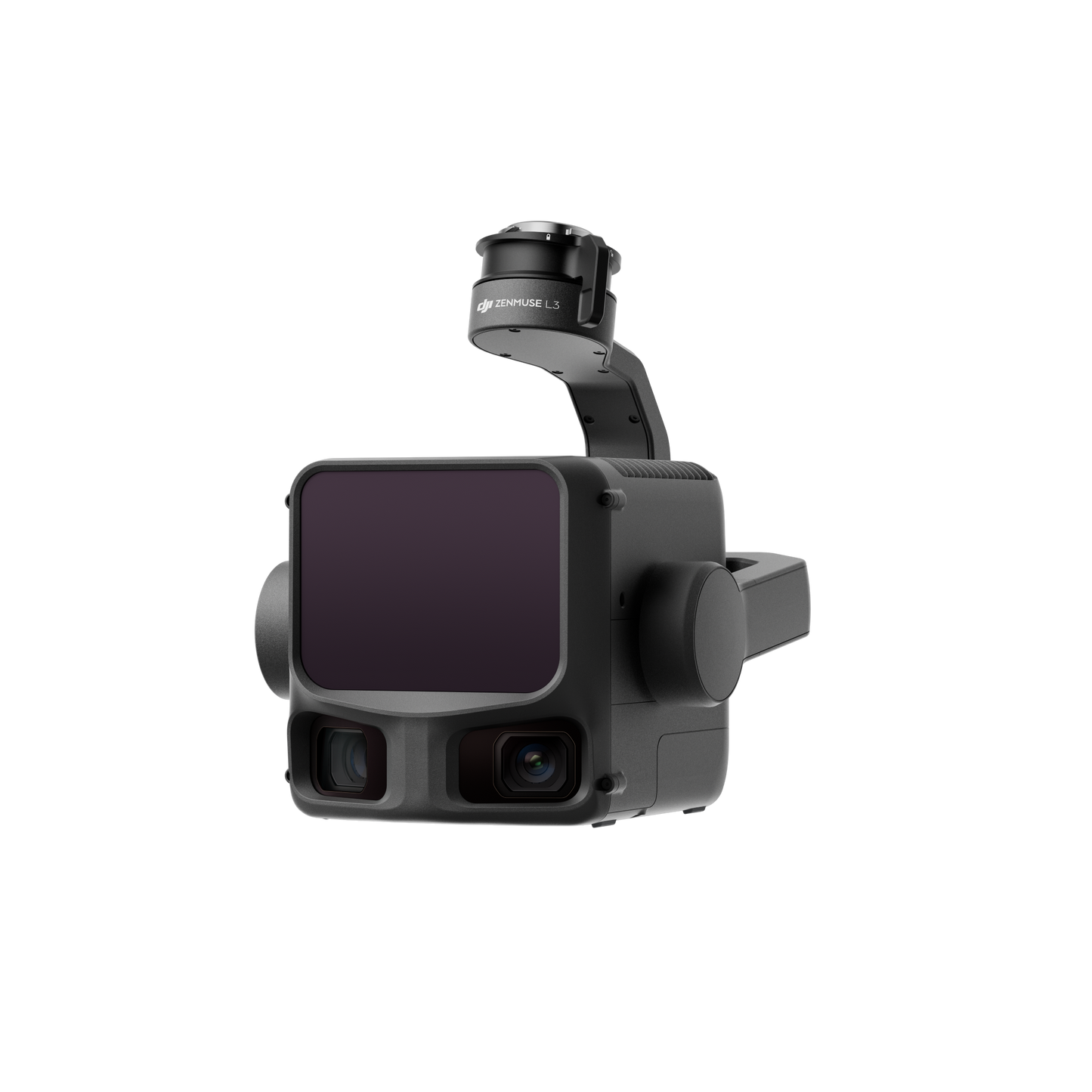

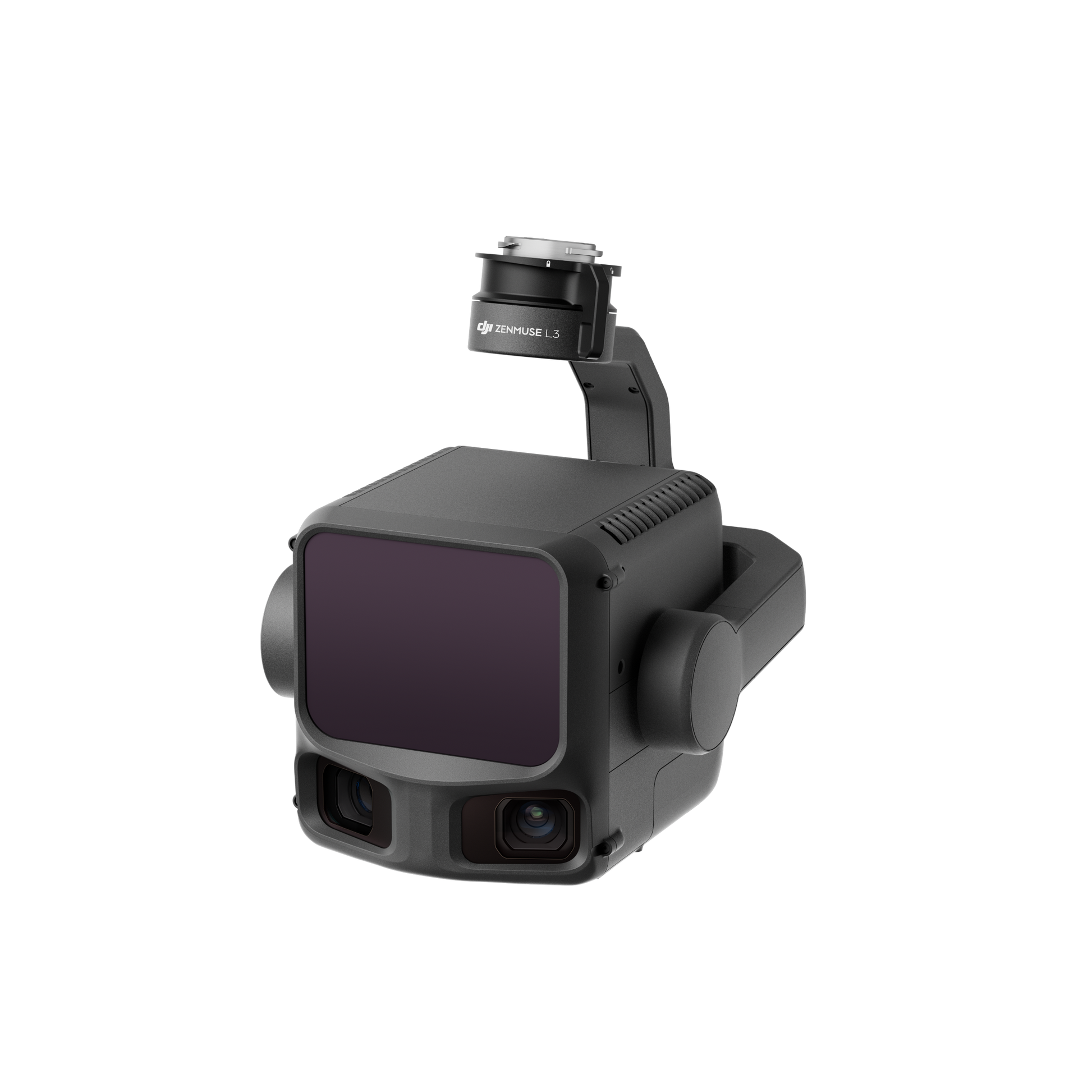

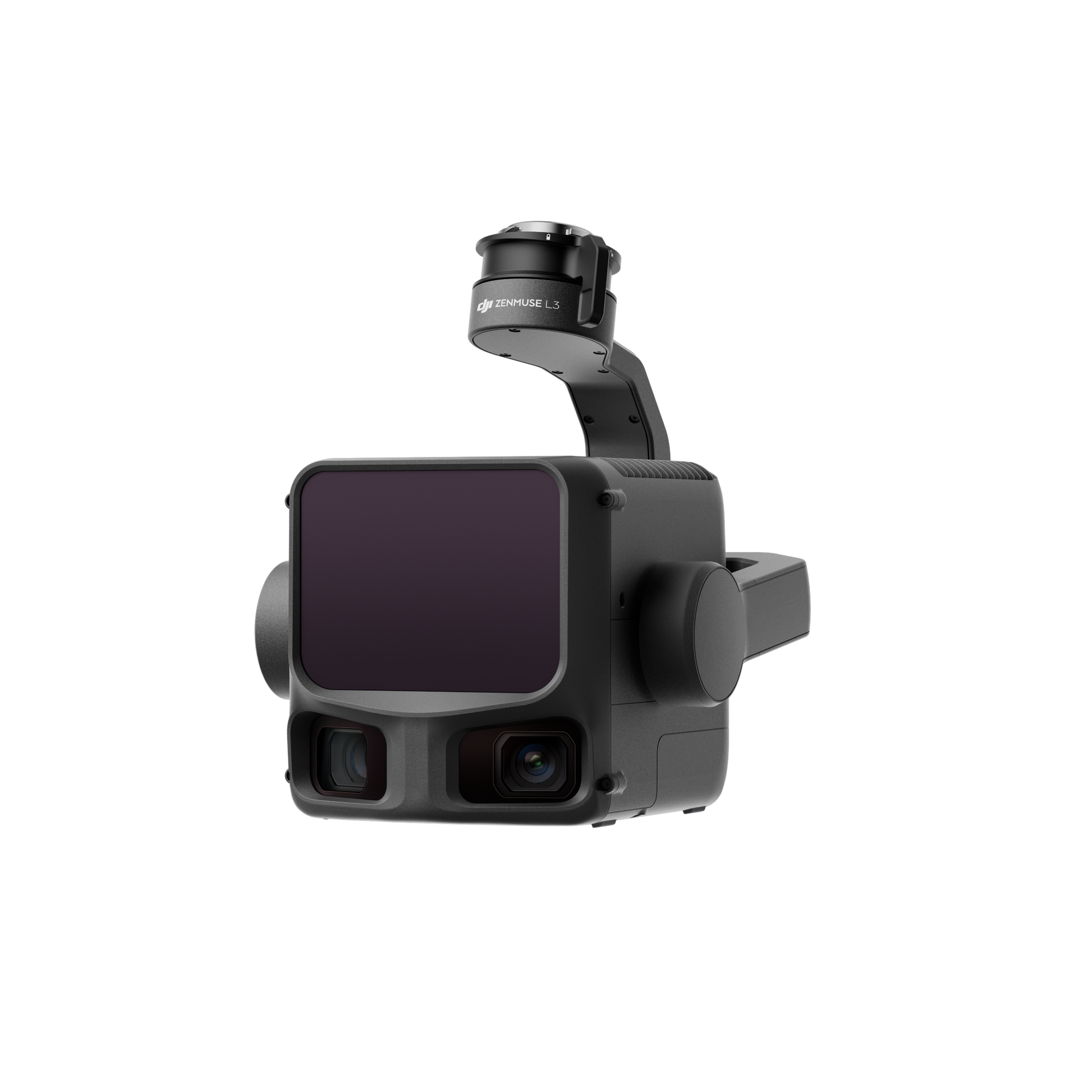

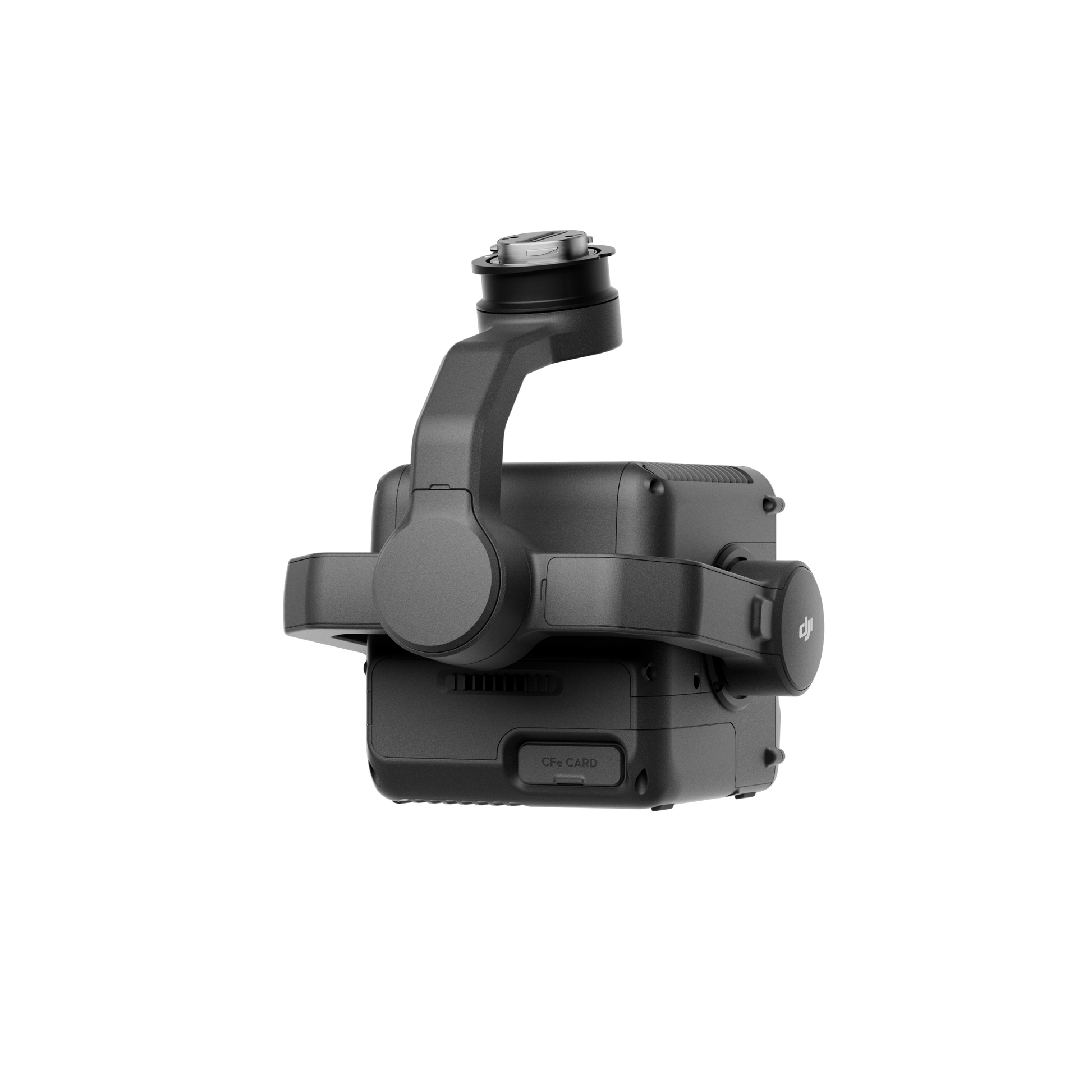

DJI Zenmuse L3

DJI Zenmuse L3: Next-Generation Enterprise LiDAR
The DJI Zenmuse L3 represents the latest evolution in DJI’s enterprise LiDAR technology, built for seamless integration with the DJI Matrice 400 and compatible platforms. Designed for high-precision mapping, inspection, and geospatial missions, it combines an advanced LiDAR module, dual RGB mapping cameras, and a high-accuracy IMU to deliver survey-grade results with exceptional efficiency.

Precision and Performance
The L3 achieves up to 3 cm vertical and 4 cm horizontal accuracy at 120 m, maintaining 5 cm vertical and 7.5 cm horizontal (RMSE) at 300 m for large-area mapping. Each unit is factory-calibrated and verified using DJI’s D-RTK 3 Station for consistent, reliable accuracy.

Advanced LiDAR System

• Range: Up to 2000 m at 80% reflectivity (100 kHz)
• Accuracy: ±10 mm
• Repeatability: <5 mm (1σ)
• Returns: Up to 16 (350 kHz)
• Laser Classification: Class 1 (eye-safe)

With 0.25 mrad beam divergence, the L3 provides dense, detailed point clouds and superior terrain and vegetation reconstruction.

Dual RGB Cameras
Dual 4/3 CMOS sensors deliver a combined 107° FOV and up to 100 MP resolution with 28 mm equivalent lenses (f/2.0–f/11), capturing high-quality imagery in any lighting condition.

High-Accuracy IMU + RTK Integration

• Yaw Accuracy: 0.02°
• Pitch/Roll Accuracy: 0.01°
• Positioning: 1 cm horizontal, 1.5 cm vertical (RTK Fix)

The synchronized IMU and RTK systems ensure precise georeferencing even in complex environments.

Efficient Workflow
Covering up to 2.5 km² per flight, the L3 integrates seamlessly with DJI Pilot 2, Terra, and FlightHub 2, with data export in LAS, LAZ, PLY, and PCD formats for compatibility with standard GIS and CAD platforms.

Rugged and Reliable

• IP54-rated protection
• Operating Temp: -20°C to 50°C
• Weight: 1.60 kg
• Power: 64 W typical, 100 W max

Built to withstand demanding conditions, the L3 delivers dependable performance across diverse environments.

Compatibility

• Aircraft: DJI Matrice 400 (requires Zenmuse L3 single gimbal connector)
• Mounting: DJI SKYPORT interface

Key Highlights

• Up to 2000 m detection range, 16-return capability
• 3–5 cm vertical accuracy depending on altitude
• Dual RGB cameras with 107° FOV
• Integrated IMU + RTK for precise georeferencing
• Full DJI software ecosystem support
• Ideal for surveying, inspection, forestry, and environmental monitoring

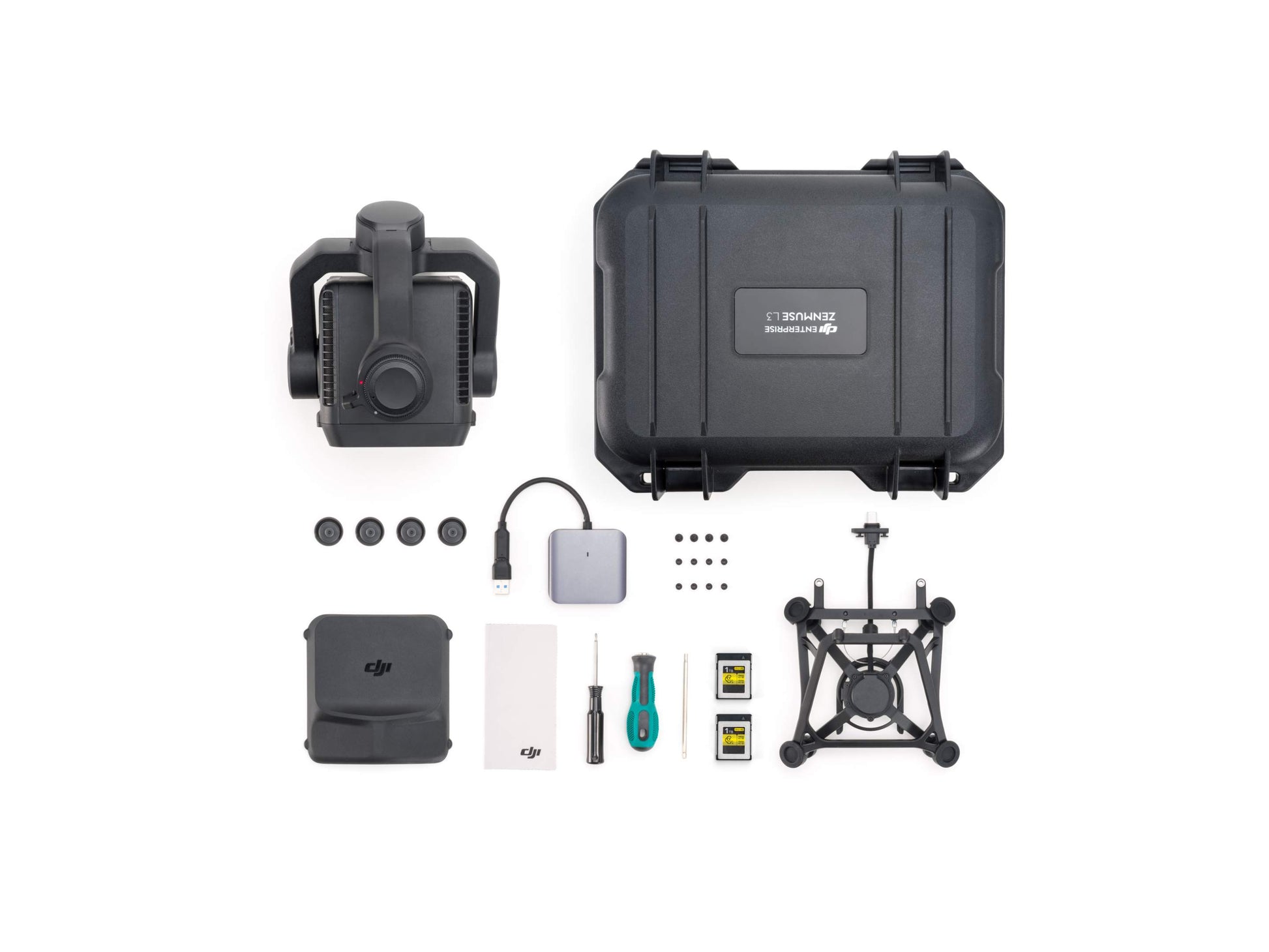

In The Box
Zenmuse L3 Sensor, Gimbal Connector, Storage Case, Dampers ×4, CFexpress Card & Reader, M400 Case Insert, Cleaning Cloth, Screws & Tools
