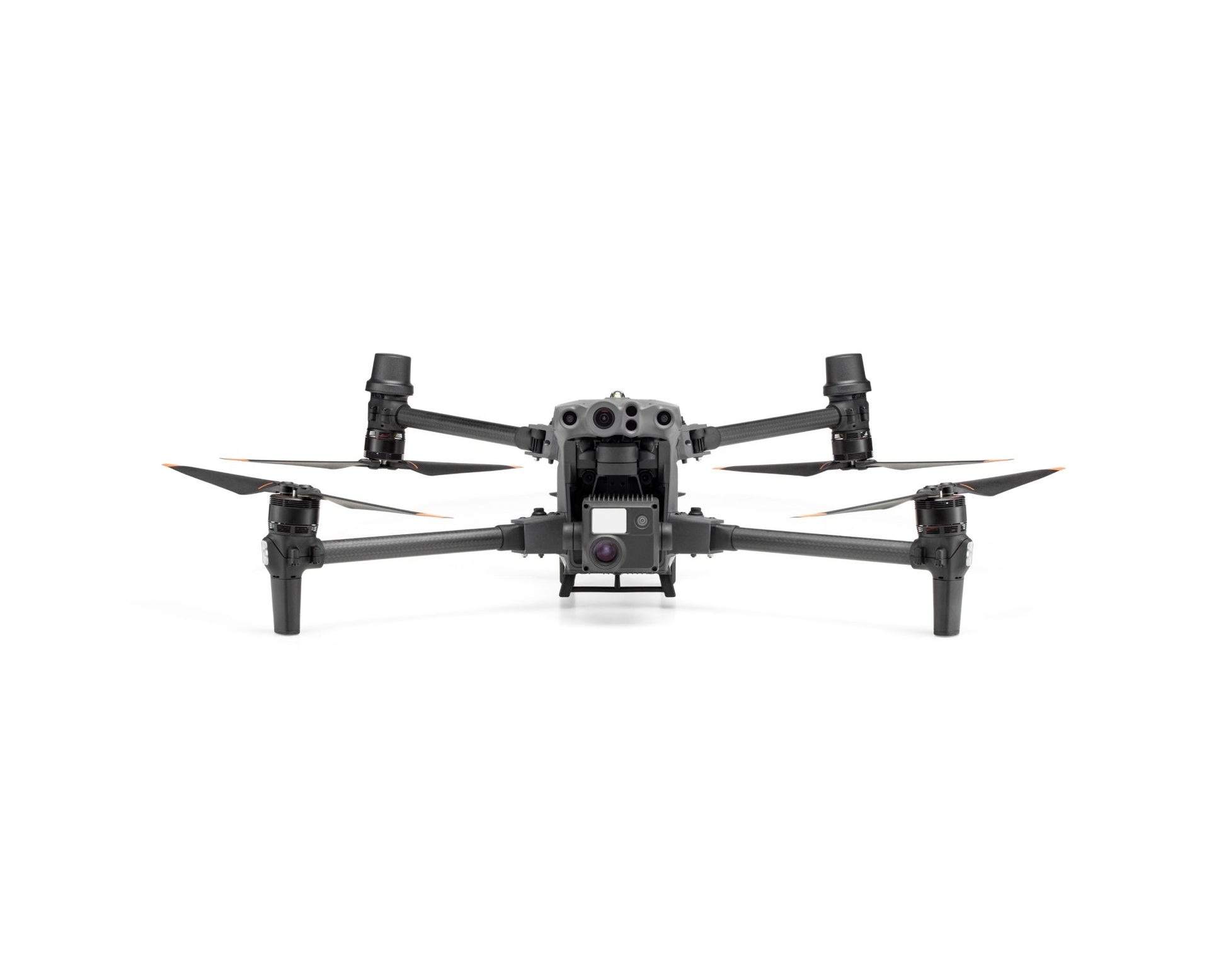

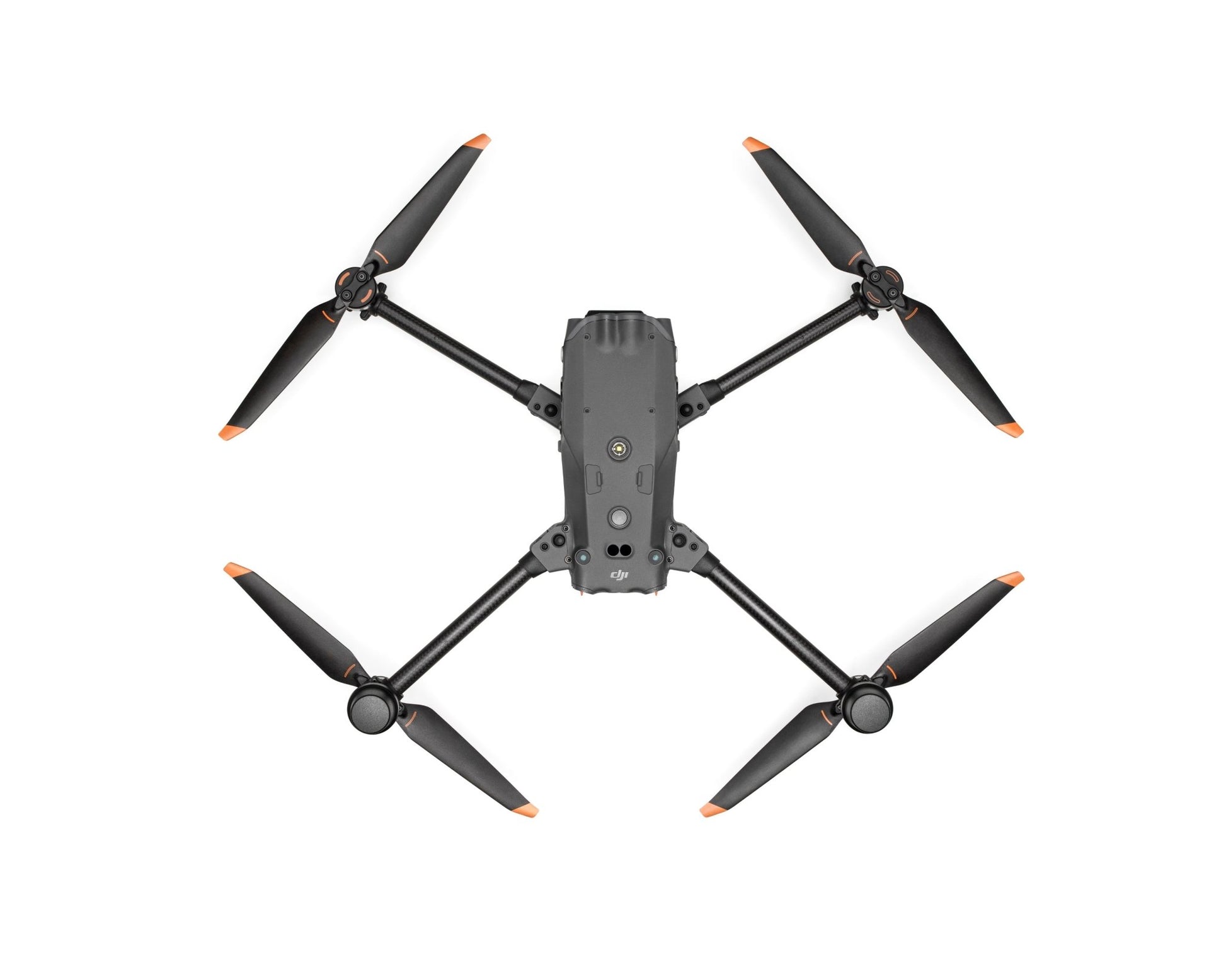

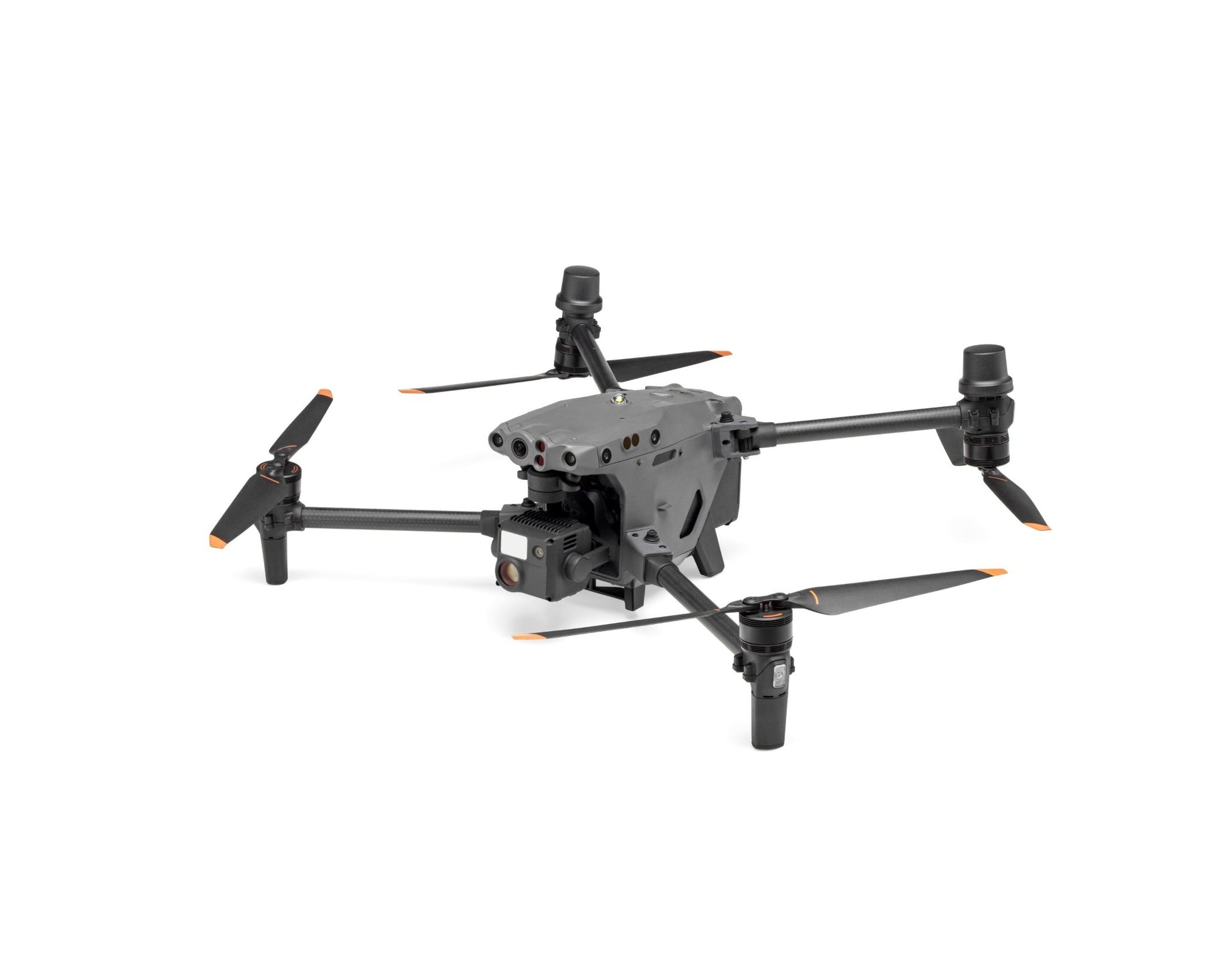

DJI Matrice 30

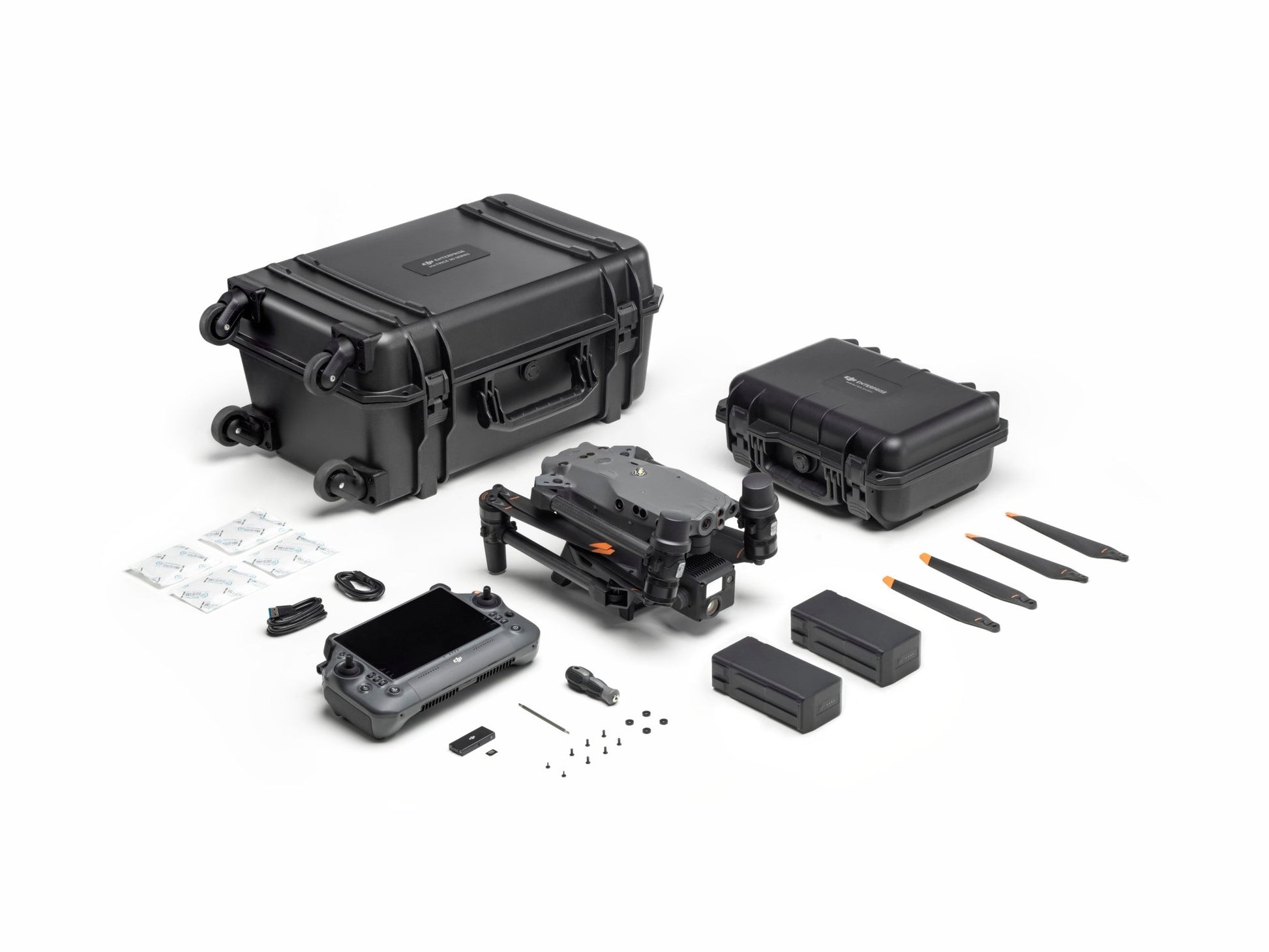

In the box:

• DJI Matrice 30 x1
• TB30 Flight Battery x 2
• BS30 Battery Station x 1
• DJI RC Plus x 1
• DJI Care Enterprise Basic  (1 Year)


 Product Highlights:

• Combination of the Matrice 300 RTK and H20 Series in a Portable Package
• Approx. 41 Minutes of Flight Time
• 48MP Zoom Camera
• 12MP Wide-Angle Camera

• 360-Degree Obstacle Avoidance
• DJI's OcuSync 3 Enterprise Transmission System

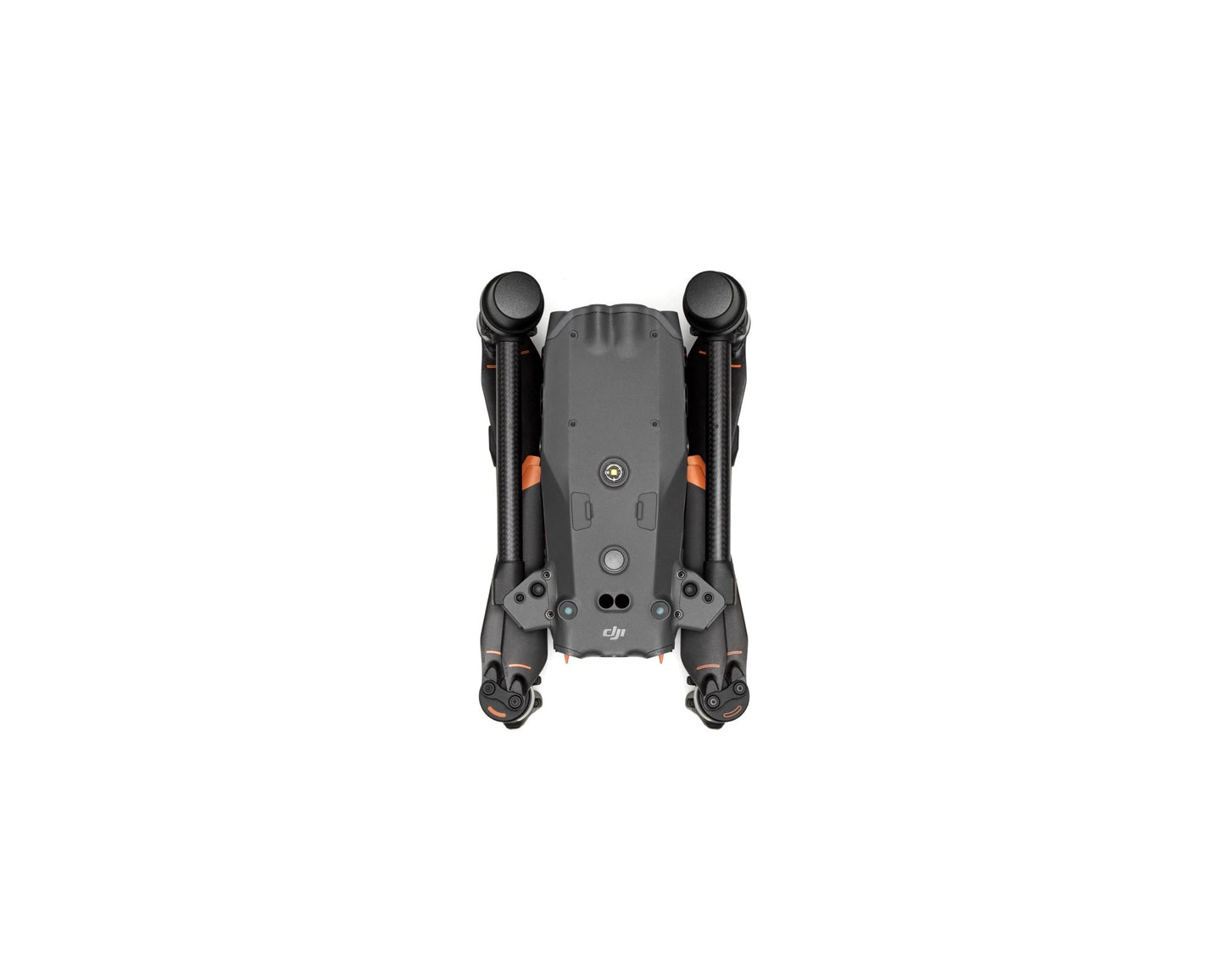

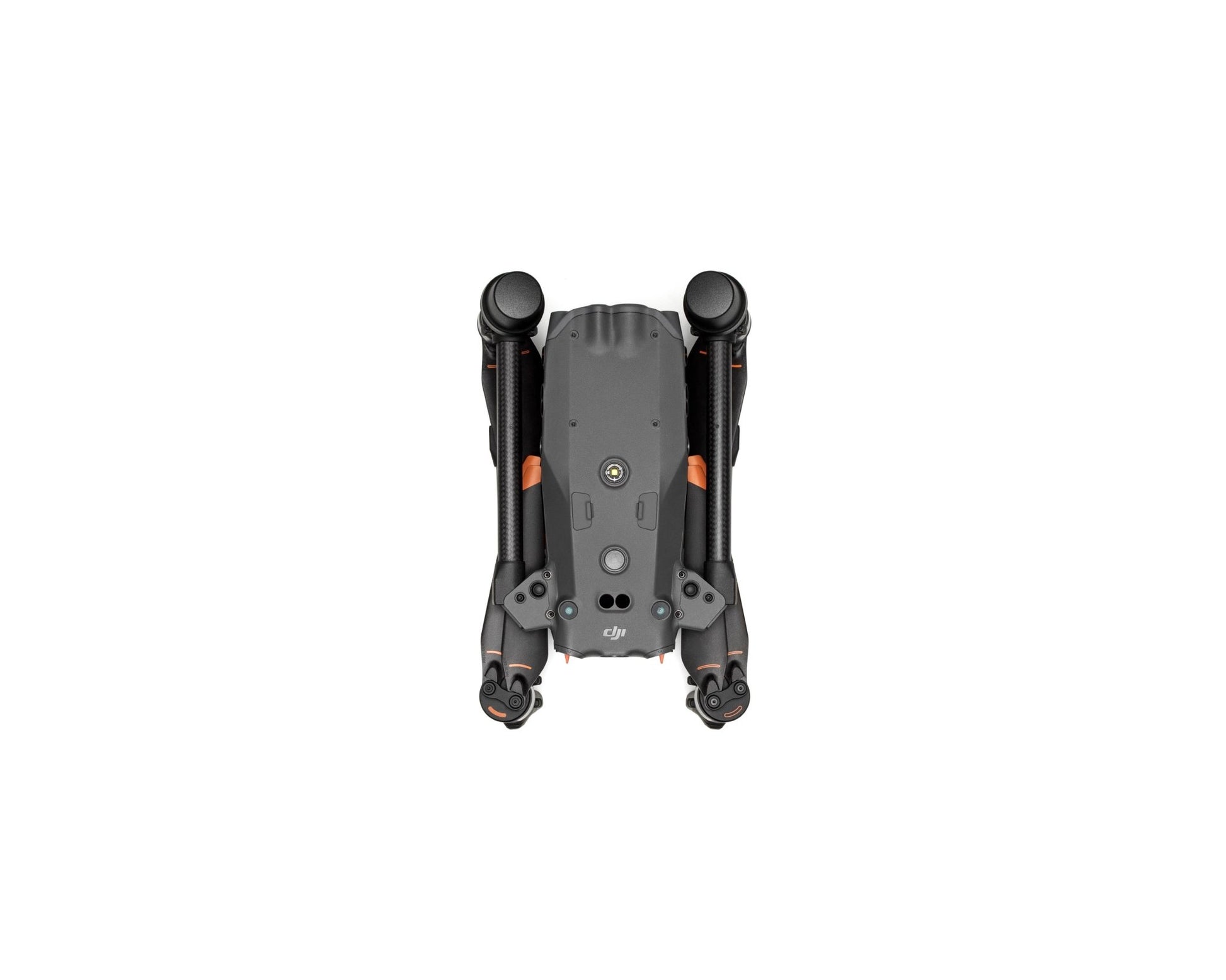

The DJI Matrice 30 combines the advanced features of the Matrice 300 RTK and H20 series, with the portability of the Mavic 2 Enterprise series. The result is a powerful, compact, and foldable platform. It is equipped with a range of multi-sensor cameras, including high-resolution wide-angle and zoom lenses, and a laser rangefinder.

Cameras and Sensors

The DJI M30 boasts a 48 MP zoom camera with 16x optical zoom and 200x maximum hybrid zoom, along with a 12 MP wide-angle camera offering an 84° field of view. Both visual sensors are capable of capturing high-definition 4K video at up to 30 frames per second. The M30 series also includes a laser rangefinder for precise distance measurements up to 1.2 km.

Flight Performance

The Matrice 30 series provides a maximum flight time of 41 minutes and a top speed of 82.8 km/h, with the ability to endure winds up to 54 km/h. It operates within a temperature range of -20°C to 50°C and can reach a service ceiling of 7000 meters above sea level. This allows the M30 to be very versatile for different missions. With an IP55 dust and water resistance rating, the Matrice 30 is built to perform reliably in various environments and conditions.

Safety

The Matrice 30T series is equipped with 360-degree obstacle avoidance, featuring dual-vision and ToF sensors on all six sides of the drone. Its vision system combines visual and infrared sensors, allowing it to detect obstacles up to 38 meters away. With redundant Dual IMU, Compass, GNSS, and batteries, the Matrice 30T series ensures safety in all flight conditions. Additionally, the integrated ADS-B receiver powers DJI AirSense, enhancing situational awareness. The health management system monitors critical components in real time, and in the event of a motor or propeller failure, the drone can perform a three-prop emergency landing.

OcuSync 3 Enterprise

The Matrice 30 series is equipped with the latest OcuSync 3 Enterprise system, which supports triple-channel 1080p video transmission and smooth switching between input feeds. This system is backed by four built-in antennas. Furthermore, for improved connectivity, the optional DJI Cellular Module, a 4G dongle ensures stable video transmission in remote or difficult work conditions.

DJI RC Plus

The Matrice 30 series features a newly designed remote controller, tailored for commercial use. With an IP54 dust and water resistance rating, it can operate in extreme temperatures ranging from -20°C to 50°C. Its long-lasting internal battery and hot-swappable external battery ensure extended operational periods for continuous flight.

Equipped with the OcuSync 3.0 Enterprise system, the controller includes four antennas for reliable, long-range video transmission, two of which are removable. The combined battery system provides up to 6 hours of screen-on time. With a peak brightness of 1200 cd/m² and a 1080p resolution, the DJI RC Plus delivers excellent screen visibility in any lighting condition. The built-in tablet runs a custom DJI Enterprise operating system for optimal performance.

For critical missions like search and rescue, hazmat response, or infrastructure inspections, the last thing you want is to navigate through touchscreen menus in challenging weather. The DJI RC Plus incorporates more physical buttons than ever, allowing pilots to develop muscle memory for quick access to essential flight functions. Six new buttons, each with a specific function depending on the camera view, enable pilots to seamlessly switch between views, zoom, and drop PinPoints without removing their hands from the control sticks.

DJI TB30 Intelligent Flight Battery and BS30 Charging Station

To meet your mission needs, a smart and portable solution with multiple charging modes is available. The charger can simultaneously charge four pairs of TB30 Intelligent Flight Batteries and one pair of RC Plus batteries, with each pair reaching a 20% to 90% charge in just 30 minutes.

The BS30 Intelligent Battery Charging Station offers three charging modes for the flight batteries. In Standard Mode, each pair is charged to 100%, one at a time. However, keeping batteries fully charged for long periods can reduce their lifespan, and the final 10% of charging (from 90% to 100%) takes significantly longer. To address this, the BS30 provides two additional modes: Ready-to-Fly Mode and Storage Mode.

Ready-to-Fly Mode charges each pair to 90% in under 30 minutes and maintains it at that level for standby, making it ideal for first responders and emergency teams who need their drones and batteries always ready. Storage Mode charges each pair to 50%, optimizing battery health and extending lifespan.
