DJI Matrice 4 Series Charging Hub

In the Box

• Battery Charging Hub × 1

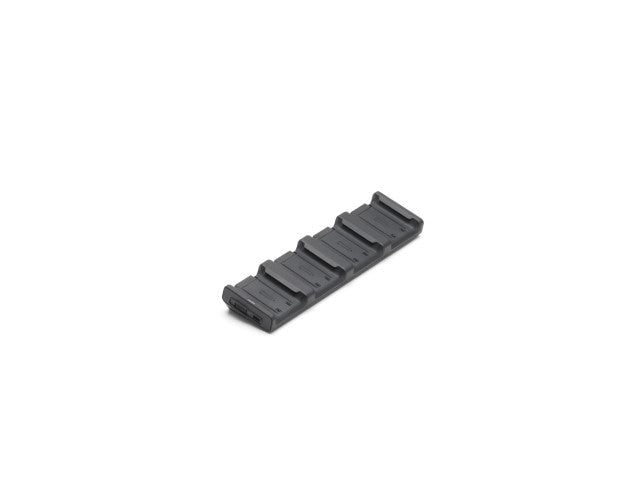

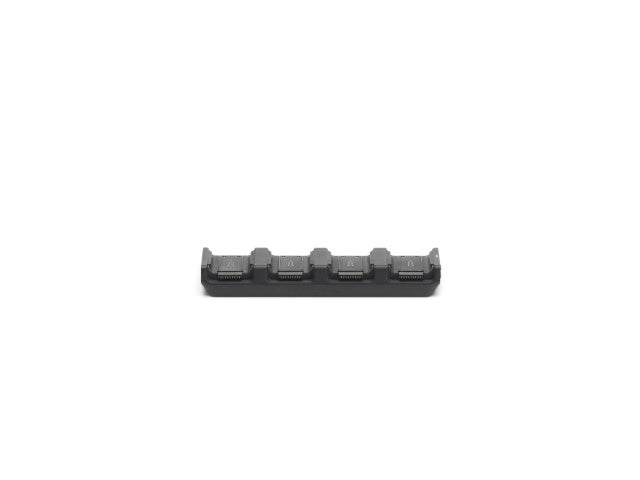

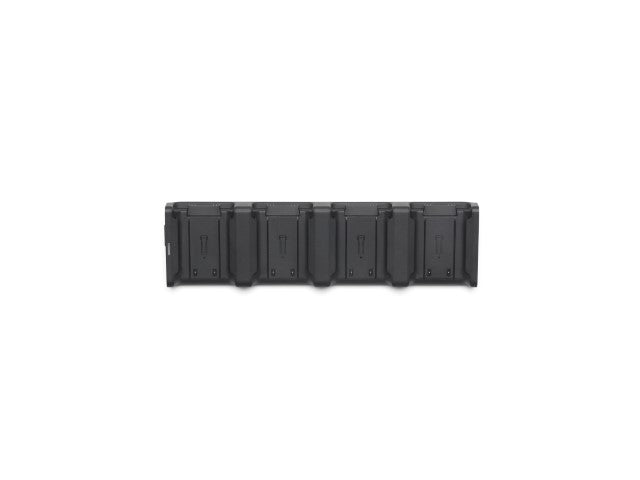

The DJI Matrice 4 Series Charging Hub is designed specifically for Matrice 4 Intelligent Flight Batteries. It supports sequential charging of up to four batteries, prioritizing those with higher power levels. The hub offers two charging modes:

• Standard Mode: Fully charges each battery sequentially to 100%
• Ready-to-Fly Mode: Charges each battery sequentially to 90% and maintains that level for fast deployment

Highlights

• Compatible with Matrice 4 Intelligent Flight Batteries
• Charges up to four batteries in sequence, beginning with the one with the highest power level

Tips

1. A DJI 100W USB-C Power Adapter is required to charge the Intelligent Flight Batteries through the hub.
2. The charging hub is compatible exclusively with BPX345-6741-14.76 Intelligent Flight Batteries. Do not use it with any other battery models.
3. Position the charging hub on a flat, stable surface during use, ensuring adequate insulation to reduce the risk of fire hazards.
4. Do not touch the metal terminals on the battery ports. If buildup forms, clean the terminals using a clean, dry cloth.

Specifications

• Model: CHX345-100
• Compatible Charger: DJI 100W Portable Charger
• Battery Compatibility: BPX345-6741-14.76
• Operating Temperature: 41° to 104° F (5° to 40° C)
• Input: 5–20 V, max 5 A

Compatibility

• DJI Matrice 4 Series
