DJI Dock 2 - Matrice 3TD

In The Box:

• Dock Body x 1
• Wind Speed Gauge Model x 1
• Expansion Bold x 4
• Ethernet Cable Connector x 1
• Power Cable Connector x 1
• Wire Ferrule x 6
• Matrice 3TD Aircraft x 1
• CW Propellers (Pair) x 1
• CCW Propellers (Pair) x 1
• Batteries and Controller are not included (can be purchased separately)

Product Highlights:

• Lightweight Design
• Weather Monitoring for Rainfall and Wind Speed
• IP55 Rating for Waterproofing and Dust Protection
• Built-In Backup Battery
• AI Spot Check for Automatic Camera Angle Adjustments
• FlyTo Tasks for Optimal Flight Routes

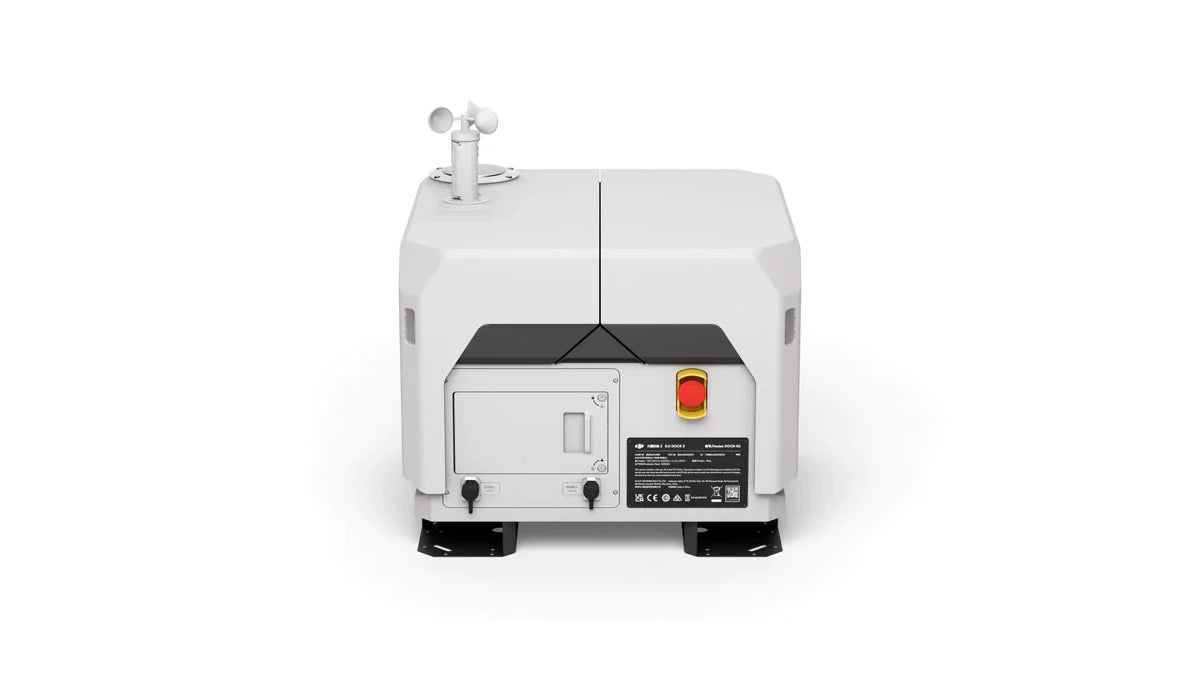

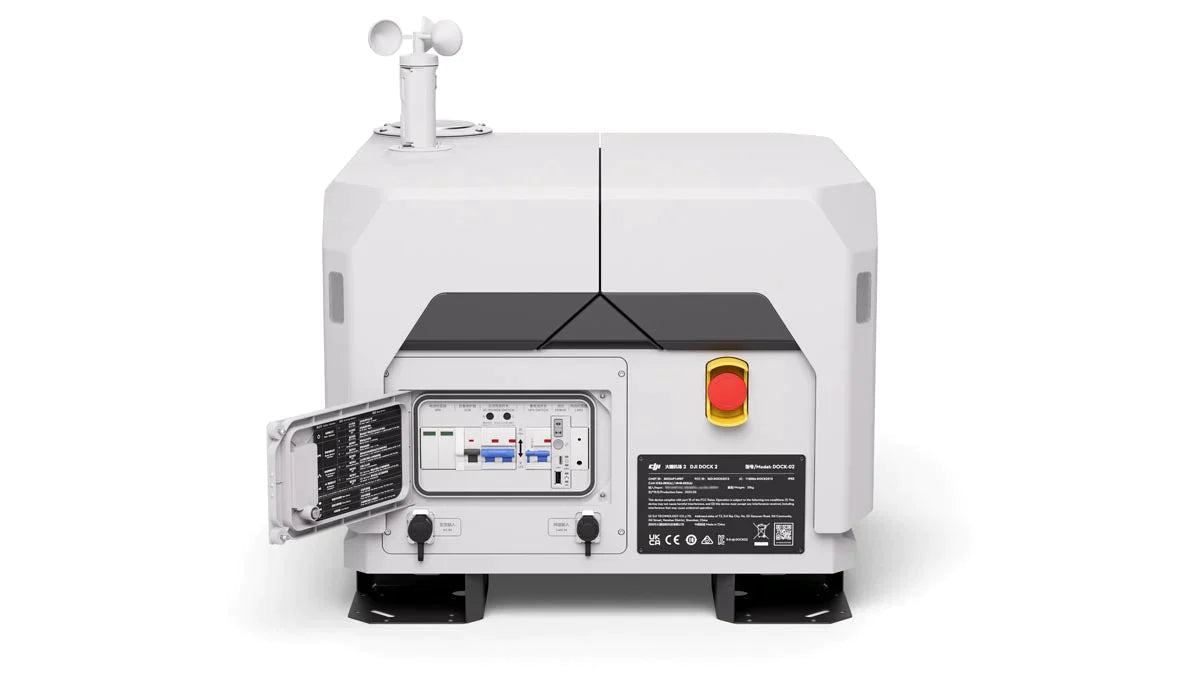

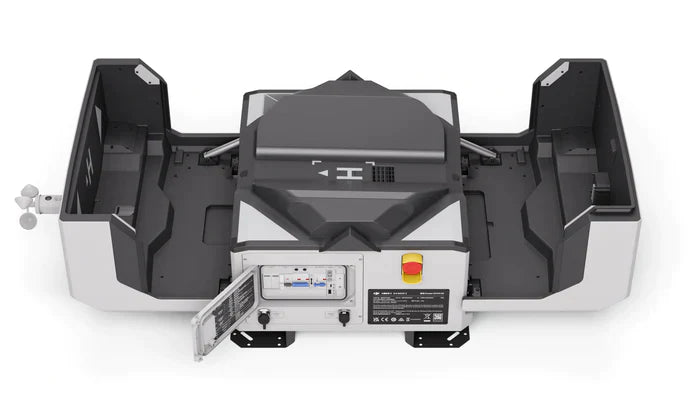

DJI Dock 2 effortlessly deploys Matrice 3D or 3TD drones with ease and security. Lightweight and equipped with advanced operational capabilities, Dock 2 features cloud-based intelligent functions that enhance efficiency and ensure high-quality automatic operations. Weighing 68% less and 75% smaller than its predecessor, this design ensures easy transport and quick setup, along with faster charging times and robust IP55 weather resistance.

Lightweight Design

The DJI Dock 2 is considerably smaller and lighter than its predecessor, making it easy to transport and install with just two people. This helps reduce costs and increase convenience.

Engineered for Harsh Weather Conditions

Built for durability, the DJI Dock 2 features an IP55 rating for dust and water resistance, guaranteeing reliable performance in challenging conditions. Additionally, Dock 2
is equipped with various sensors, including rainfall and wind speed monitors, providing real-time weather updates. Combined with online weather forecasting through DJI FlightHub 2, it reduces flight risks by providing timely alerts or stopping flights when needed.

Built-In Backup Power

In the event of a power outage, the DJI Dock 2 includes a built-in backup battery that enables autonomous operation for more than five hours, giving the aircraft enough time to return and land safely.

Improved Landing Accuracy

Leveraging advanced image recognition, the aircraft precisely detects positioning markers on the landing pad, while the new slide-ramp centering design guarantees accurate landings.

Low Maintenance

Thanks to its outstanding protection and reliability, the DJI Dock 2 only needs maintenance about once every six months.

Emergency Alerts

If task failures or emergencies occur, DJI FlightHub 2 sends email notifications, allowing operators to quickly identify and resolve issues.

DJI Matrice 3D Series | Enhanced Aerial Operations

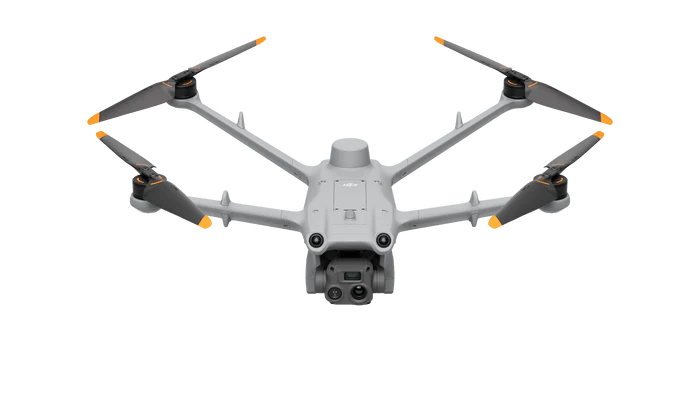

The cutting-edge DJI Matrice 3D/3TD is specifically designed for use with DJI Dock 2. The Matrice 3D is equipped with a telephoto camera and a wide-angle camera for precise mapping, while the 3TD model adds infrared capabilities, making it ideal for security and inspection operations.

Quick Takeoff

DJI Dock 2 features dual RTK antennas for precise RTH location data and conducts a complete propeller inspection, allowing takeoff in just 45 seconds.

Fast Charging

With rapid charging capabilities, DJI Dock 2 charges the aircraft from 20% to 90% in just 32 minutes.

Dual-Camera Monitoring

 With both internal and external fisheye cameras, DJI Dock 2 offers real-time monitoring of the dock's interior and exterior, enabling remote observation of weather conditions and flight operations.

Cloud Mapping with Maximum Flexibility

By utilizing collected flight data, DJI FlightHub 2 creates high-precision 3D models that can be annotated, measured, and downloaded for in-depth analysis. Operators can visually modify flight routes and preview simulated imaging outcomes using high-precision 3D models, improving operational efficiency and enhancing planning accuracy. Even in remote locations, operators can control flight and camera angles using a keyboard and mouse through DJI FlightHub 2 or other cloud platforms.

AI Spot Check

By selecting a specific area within the 3D model, the aircraft automatically adjusts the camera angle to ensure accurate capture throughout multiple flights.

FlyTo Tasks

DJI FlightHub 2's FlyTo tasks use 3D models to design the most efficient flight routes. Operators can easily choose a destination, and the aircraft will navigate safely and effectively.

Obstacle Avoidance

During automated flight tasks, the aircraft uses omnidirectional obstacle detection and automatic obstacle avoidance features to enhance task success.
