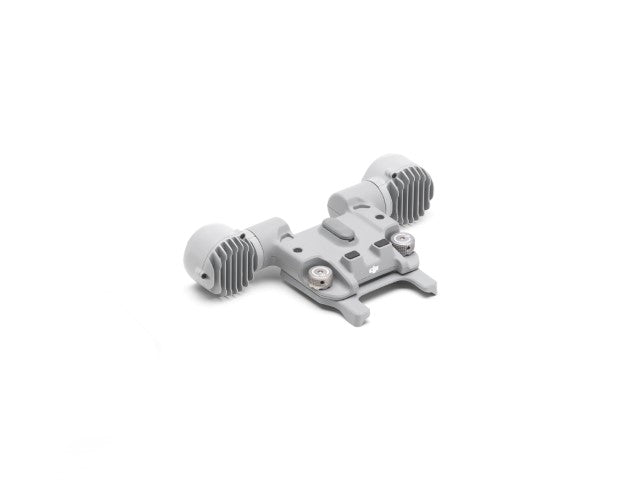

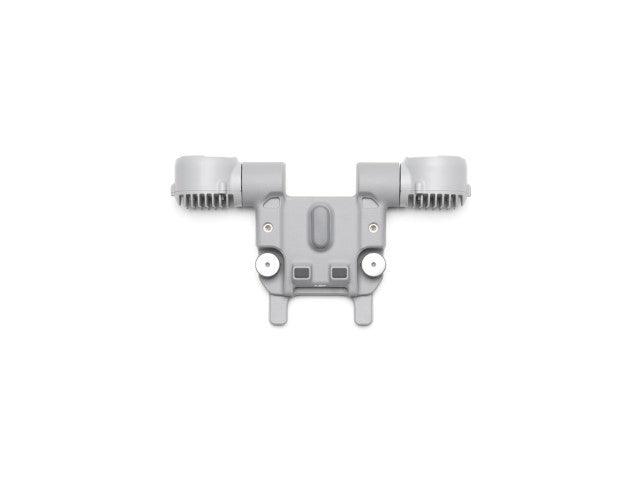

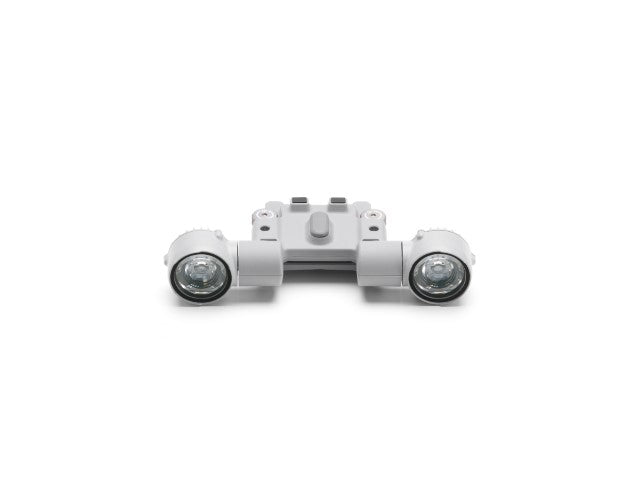

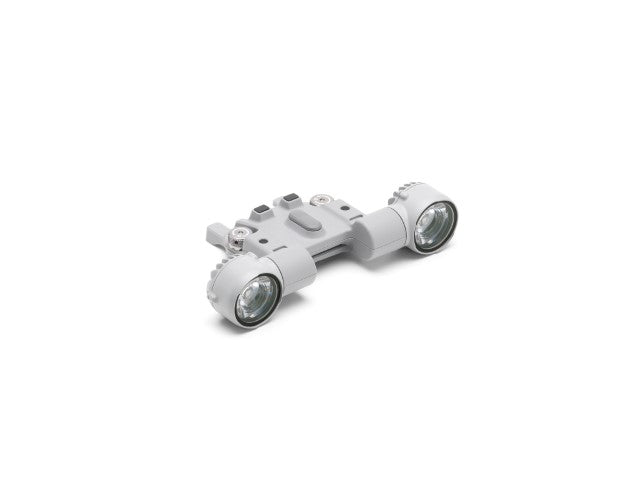

DJI AL1 Spotlight

In The Box

• Spotlight × 1
• Spare Screws × 2
• Hex Key × 1

Overview

The DJI AL1 Spotlight features two operational modes: always-on and strobe. It delivers bright illumination for subjects up to 100 meters away. The spotlight seamlessly integrates with the gimbal, ensuring the illuminated area aligns with the camera's view. Its wide FOV lighting mode also allows for larger area coverage in wide-angle mode. The spotlight and speaker can operate independently or together, offering flexibility for various operational needs.

Highlights

• Two modes: always-on and strobe
• Illumination that follows gimbal movements
• Wide FOV lighting for wider coverage

Tips

1. Ensure a secure installation by tightening the screws. For prolonged use, retighten the screws with the included hex key after setup.
2. After installation, follow the app's prompts to activate the spotlight. If prompted, update to the latest firmware.
3. Attaching the spotlight may impact the propulsion and vision system of the Matrice 4 Series aircraft; exercise caution while flying.
4. Do not direct the spotlight towards people's eyes.
5. The spotlight may get hot with prolonged use. Handle it carefully to prevent burns.

Specifications

• Weight: 99 g (with bracket), 91 g (without bracket)
• Dimensions:
  • 95×164×30 mm (L×W×H, with bracket)
  • 79×164×28 mm (L×W×H, without bracket)
• Max Power: 32 W
• Illuminance:
  • 4.3±0.2 lux @ 100 m
  • 17±0.2 lux @ 50 m
• Effective Illumination Angle: 23° (10% relative illuminance)
• Effective Illumination Area:
  • 1,300 m² @ 100 m (Normal Mode)
  • 2,200 m² @ 100 m (Wide FOV Mode)
• Modes: Always-on and strobe
• Gimbal Specifications:
  • Mechanical Tilt Range: -135° to 45°
  • Controllable Tilt Range: -90° to 35°
  • Max Tilt Speed: 120°/s
  • Alignment Accuracy: ±0.1°
• Operating Temperature: -4° to 122° F (-20° to 50° C)
• Mounting: Quick-release hand-tightened screws

Compatibility

• Designed for use with DJI Matrice 4 Series aircraft
