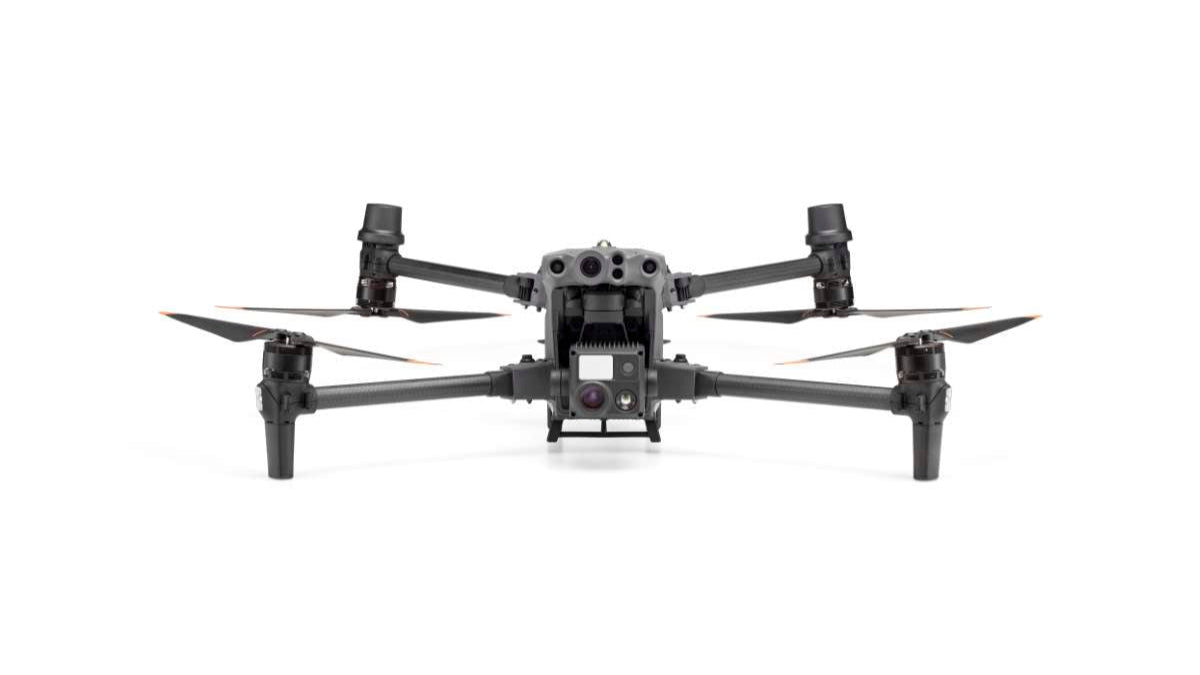

DJI Matrice 30T

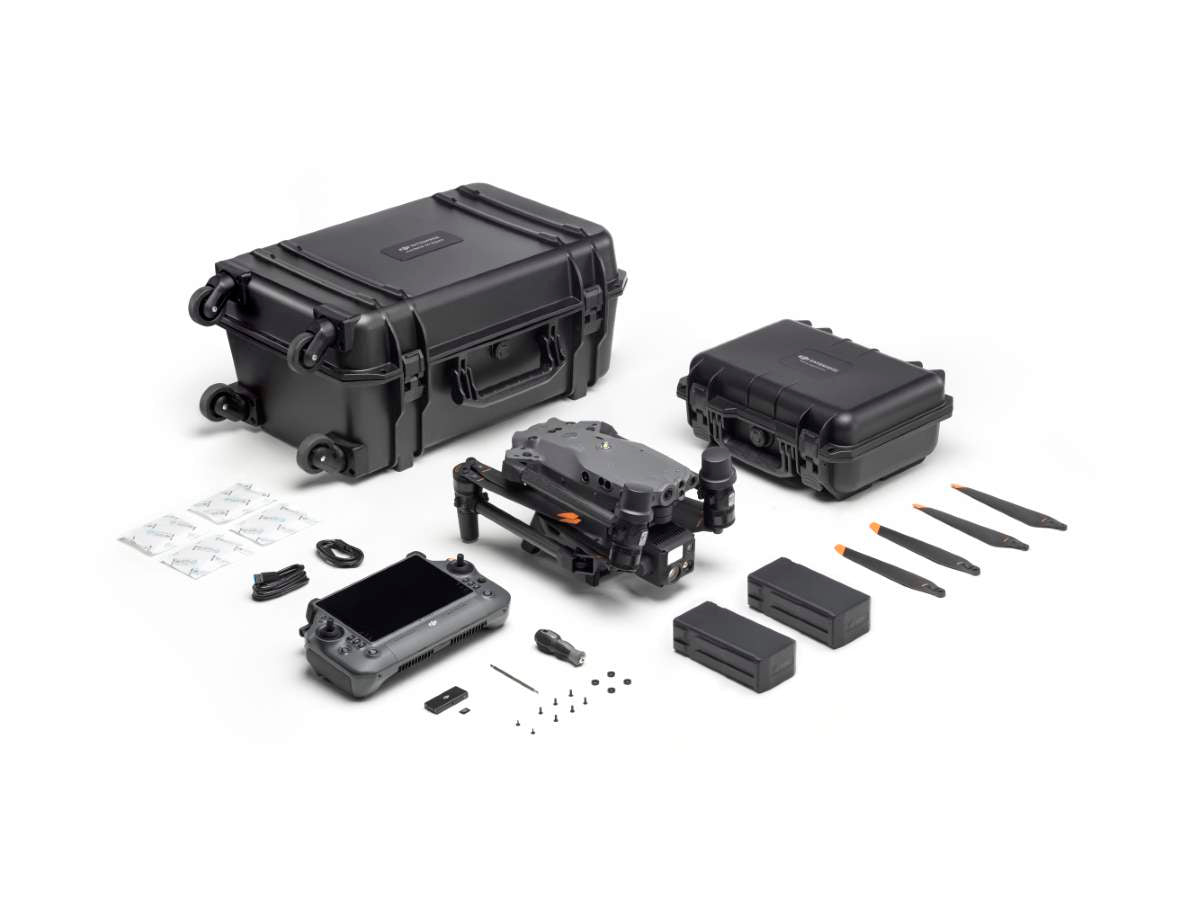

In the box:

• DJI Matrice 30T x1
• TB30 Flight Battery x 2
• BS30 Battery Station x 1
• DJI RC Plus x 1

Product Highlights:

• Combination of the Matrice 300 RTK and H20 Series in a Portable Package
• Approx. 41 Minutes of Flight Time
• 48MP Zoom Camera and 12MP Wide-Angle Camera
• High Resolution 640x512 Thermal Imaging Camera
• 360-Degree Obstacle Avoidance
• DJI's OcuSync 3 Enterprise Transmission System

The DJI Matrice 30 blends the capabilities of the Matrice 300 RTK and H20 series with the portability of the Mavic 2 Enterprise series. The result is a robust, compact, and foldable platform. It is equipped with multi-sensor camera units, including high-resolution wide-angle and zoom cameras, a laser rangefinder, and thermal imaging.

Flight Performance

The Matrice 30 series offers a maximum flight time of 41 minutes and a top speed of 82.8 km/h, capable of withstanding winds up to 54 km/h. With an operating temperature range of -20°C to 50°C and a service ceiling of up to 7000 meters above sea level, the Matrice 30 is adaptable to various missions. Its IP55 dust and water resistance rating ensures it is equipped to handle any environment, making it reliable in diverse conditions.

Cameras and Sensors

The DJI M30T features an integrated camera gimbal unit with four sensors, similar to the Zenmuse H20T. It includes a 48 MP zoom camera with 16x optical zoom and 200x max hybrid zoom, alongside a 12 MP wide-angle camera with an 84° field-of-view. Both visual sensors are capable of capturing high-definition 4K video at up to 30 frames per second. Additionally, the M30 series is equipped with a laser rangefinder that provides precise distance measurements up to 1.2 km. The Matrice 30T is further enhanced with a high-resolution 640x512 thermal imaging camera.

Safety

The Matrice 30T series is equipped with 360-degree obstacle avoidance and dual-vision and ToF sensors on all six sides of the drone. The vision system combines visual and infrared sensors, enabling it to detect obstacles up to 38 meters away. With redundant Dual IMU, Compass, GNSS, and batteries, the Matrice 30T series ensures safety in all flight conditions. Additionally, the built-in ADS-B receiver powers DJI AirSense, providing enhanced situational awareness. The health management system monitors critical components in real time, and in the event of a motor or prop failure, the drone can perform a three-prop emergency landing.

OcuSync 3 Enterprise

The Matrice 30 series features the latest iteration of the OcuSync Enterprise system, OcuSync 3 Enterprise, which supports triple-channel 1080p video transmission and seamless switching between input feeds even in complex environments, is supported by four built-in antennas. Enhance your connection with the DJI Cellular Module, an optional 4G dongle that enables stable video transmission in difficult or remote work environments.

DJI RC Plus

The Matrice 30 series comes with a newly designed remote controller, specifically built for commercial applications. It boasts an IP54 dust and water resistance rating and can operate in extreme temperatures ranging from -20°C to 50°C. With a long-lasting internal battery and a hot-swappable external battery, the RC Plus ensures extended operational periods for uninterrupted flight.

Equipped with the OcuSync 3.0 Enterprise system, the controller has four antennas for reliable, long-range video transmission, two of which are removable. The combined battery system offers up to 6 hours of screen-on time. With a peak brightness of 1200 cd/m² and a 1080p resolution, the DJI RC Plus ensures excellent screen visibility in all lighting conditions. The built-in tablet runs a custom DJI Enterprise operating system to guarantee optimal performance.

For critical missions like search and rescue, hazmat response, or infrastructure inspections, the last thing you want is to navigate through touchscreen menus in difficult weather conditions. The DJI RC Plus includes more physical buttons than ever before, helping pilots develop muscle memory to quickly access essential flight functions. Six new buttons, each assigned a specific function depending on the camera view, allow pilots to effortlessly switch between views, zoom, and drop PinPoints without taking their hands off the control sticks.

DJI TB30 Intelligent Flight Battery and BS30 Charging Station

To fulfill your mission requirements, a smart and portable solution with multiple charging modes is available. The charger can simultaneously charge four pairs of TB30 Intelligent Flight Batteries and one pair of RC Plus batteries, with each pair reaching 20% to 90% charge in just 30 minutes.

The BS30 Intelligent Battery Charging Station offers three charging modes for the flight batteries. The first mode, Standard Mode, charges each pair to 100%, one pair at a time. However, keeping batteries fully charged for extended periods can shorten their lifespan, and the final 10% of charging, from 90% to 100%, takes considerably longer. To address this, the BS30 provides two additional charging options: Ready-to-Fly Mode and Storage Mode.

Ready-to-Fly Mode charges each pair to 90% in under 30 minutes and then maintains them at 90% for standby. This is ideal for first responders and emergency teams who need their drones and batteries prepared at all times. Storage Mode charges each pair to 50%, optimizing battery health and longevity.
